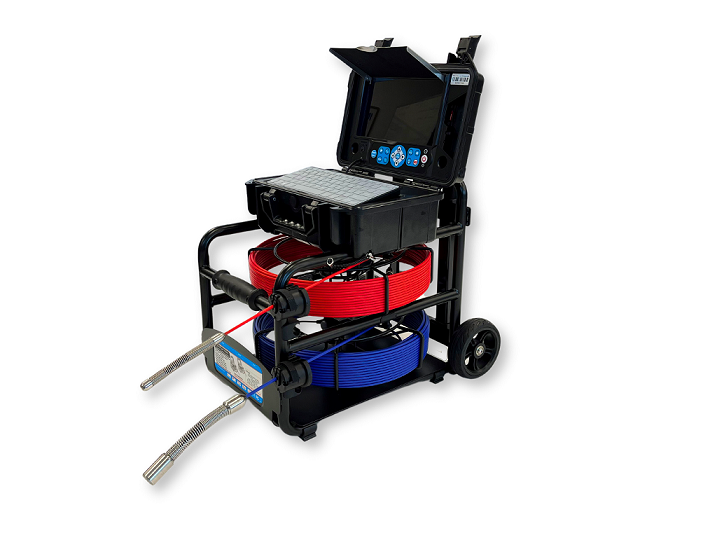

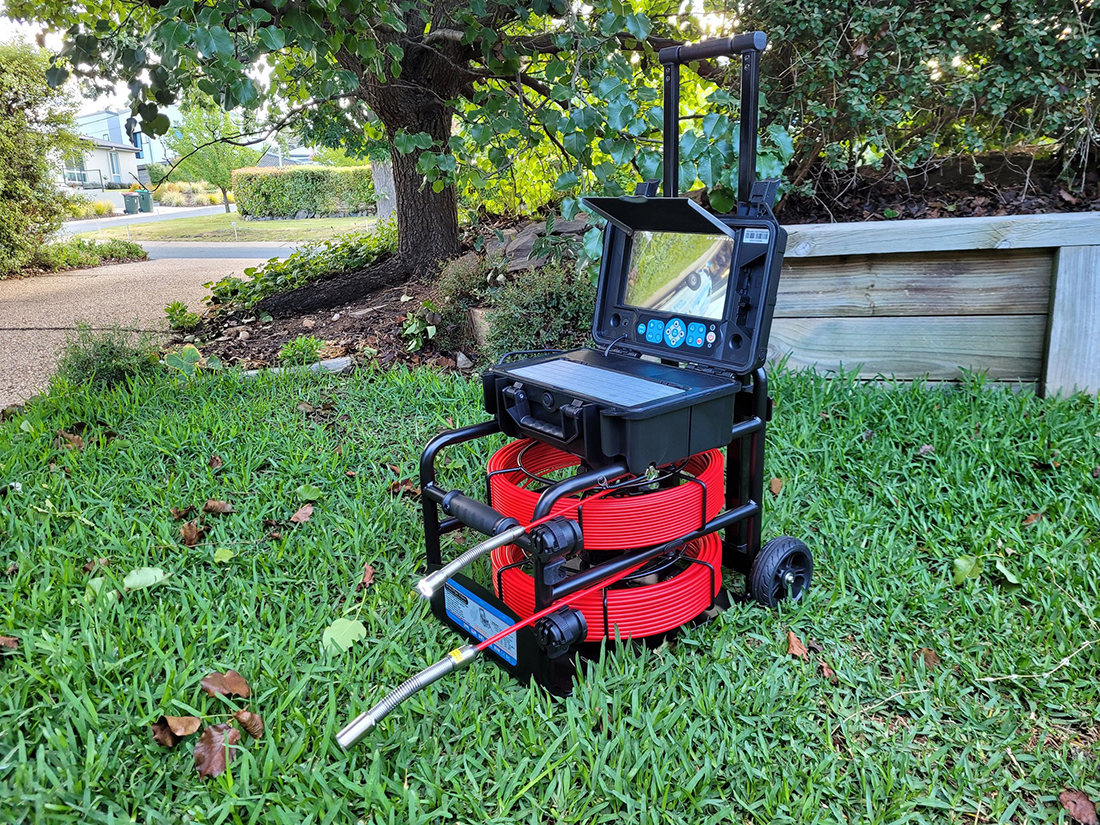

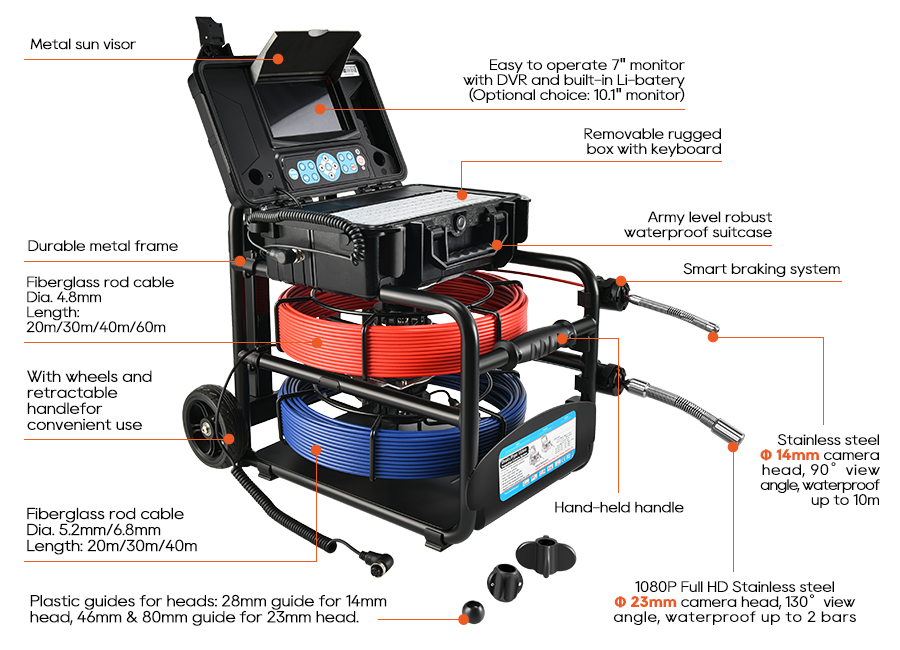

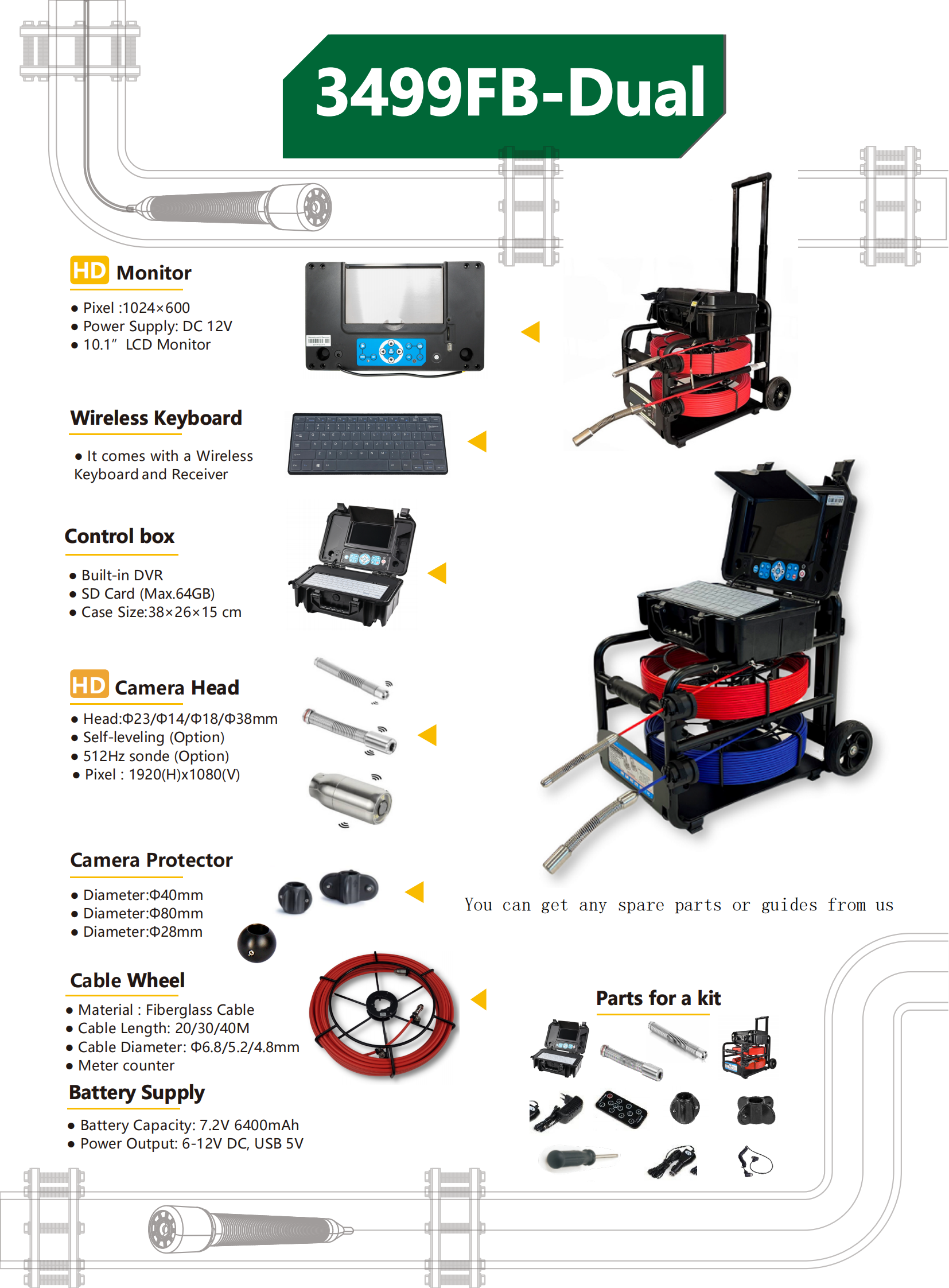

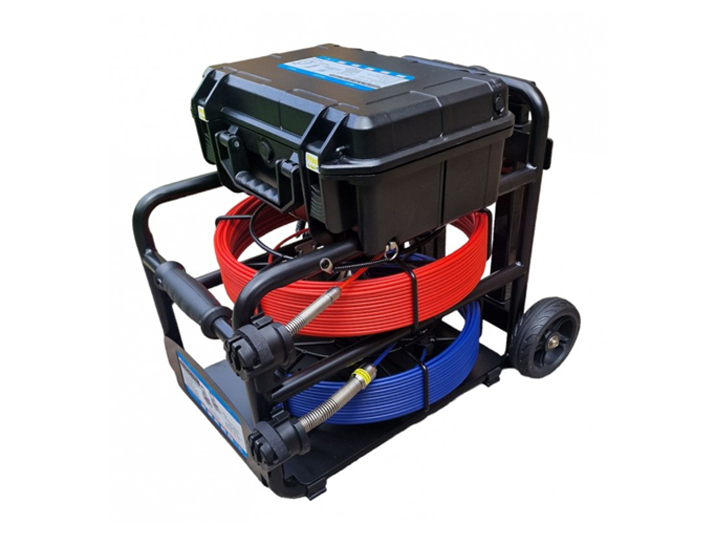

Dual Pipe Inspection Camera with Ø14 & 23mm heads Ø 4.8 & 6.8mm Pushrod

• 23mm camera head with 20-40m cable, dia. 5.2mm or 6.8mm

• 1080P Full HD Stainless steel camera head, IP68 waterproof level

• With on-screen distance counter

• Wireless keyboard for text input (English)

• With two plastic guides 8-901 and 8-923

• 14mm camera head with 20-40m red color rod cable, dia. 4.8mm

• with ball guide 8-933

• Suitable for pipe sizes: 20 to 150mm (0.8" to 4"）

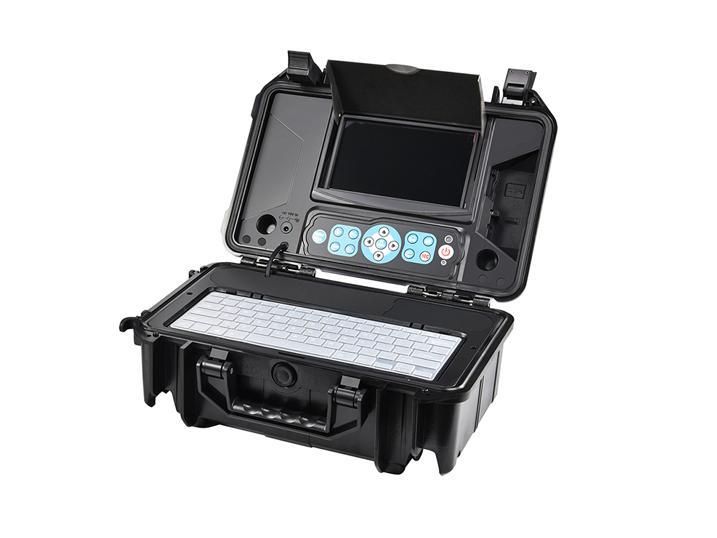

• 7" or 10.1" LCD monitor with recording feature; records to SD card

• Ability to go through 90°bends in Φ32mm pipes

• Rechargeable battery lasts up to 6 hours

• Whole system waterproof (box closed)

• Power adapter and car charger included

• Compact, Rugged and easy to use design

• With wheels and retractable handle for easy transpotation and operation

   Optional Features:

• Built-in 512hz sonde

• Self-leveling function

• 33khz transmitter

• 10.1" LCD screen

• 38mm camera head

• 18mm camera head



Warranty and After-Sales Policy

We provide a ONE YEAR limited warranty for our cameras. Failures due to misuse, abuse, or normal wear and tear are not covered.

1.Immediate Defects: If you encounter any defects in the camera right after receiving it, please capture a video of the issue and send it to us. We'll promptly provide you with a new replacement part at no additional cost.

2.Used Cameras: For cameras that have been in use and later develop issues within the warranty period, we have two options for you:

Option 1: Send us the defective part, and we'll repair it for you under the one-year warranty. There might be a repair fee if new materials are needed for replacement. If no new materials are required, there won’t be a repair fee. Normally, the customer covers the shipping cost to send us the broken part, and we'll return it at our expense.

Option 2: Purchase a new part. We understand that camera systems are utilized in demanding applications and environments, subject to normal wear and tear. Hence, we provide comprehensive instructions in video and PDF formats, along with all the necessary spare parts for daily repairs. Our sewer cameras are designed with modular components, enabling users to easily conduct their own repairs using simple hand tools. All components are plug-and-play and can be readily replaced.

3.If you prefer not to repair it or need an immediate solution, you can also take it to one of our authorized repair centers in Europe/USA to promptly address any issues.

Remarks:

1.Once customers identify the problem, please take some photos/videos and send them to us via email/WhatsApp or other methods.

2.After our technicians review the photos/videos, we will supply: Spare parts and technical help

3.In some situations, if the problem can't be solved by customers themselves, customers can send damaged parts back to us.

4.To save shipping costs, we suggest you order some extra parts for future use and send back all faulty parts at one time.

• 1 x 23mm/38mm Camera head + 1 x 14mm/18mm Camera head

• 1 x 20/30/40m cable wheels + 20/30/40/60m cable wheels

• 2 x Plastic guides(dia.80mm and dia.46mm) + 1 x ball guide(dia.28mm)

• 1 x remote control

• 1 x screw driver

• 1 x power adapter

• 1 x car charger

• 2 x connection cables

• 1 x Screws and camera head waterproof seal

• 1 x waterproof control box with monitor mounted
