Pipe Inspection Camera Ø38mmØ/23mm Camera Head 60m Ø6.8mm Pushrod

   Key Features:

• 1/3" CMOS, 120°wide vision angle, 480 TV Lines

• Camera Size: Φ38mm×81mm（main body）

• Two roller skids, mini one at dia.72mm, another universal skid at dia.115-250mm

• Sapphire glass lens cover, 12 white LEDs

• Diameter of camera:38mm,  Focus Distance 12cm (approx)

• Water proof level, 20m underwater (camera fix on cable)

• Push cable dia. 6.8mm

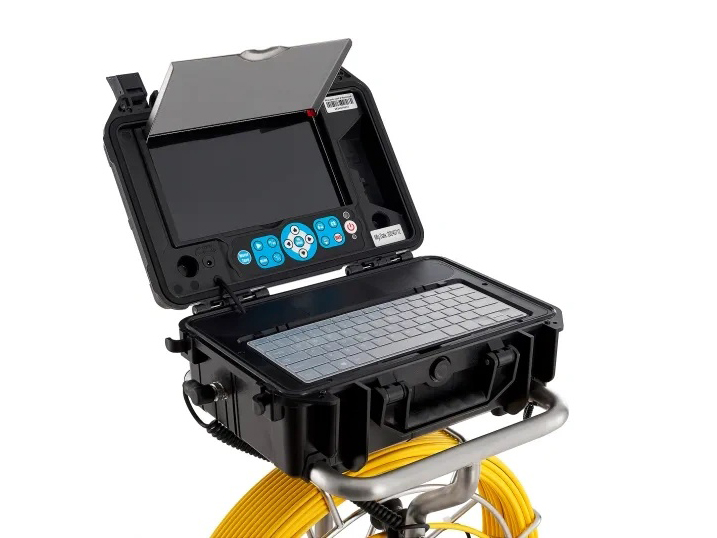

• 7” LCD color monitor

• SD Card slot to store still pictures or videos

• One push record button LED brightness control buttons

• Video image rotate button

• With microphone for audio recording

• Built-in rechargeable battery lasts up to 5 hours

• On-Screen date and time

• With self-leveling feature

• On-screen meter/ft. distance display

• 40-60m fiberglass push rod

• With universal installation brackets

    Optional Features:

• With built-in 512Hz sonde

• With 33Khz transmitter

Warranty and After-Sales Policy

We provide a ONE YEAR limited warranty for our cameras. Failures due to misuse, abuse, or normal wear and tear are not covered.

1.Immediate Defects: If you encounter any defects in the camera right after receiving it, please capture a video of the issue and send it to us. We'll promptly provide you with a new replacement part at no additional cost.

2.Used Cameras: For cameras that have been in use and later develop issues within the warranty period, we have two options for you:

Option 1: Send us the defective part, and we'll repair it for you under the one-year warranty. There might be a repair fee if new materials are needed for replacement. If no new materials are required, there won’t be a repair fee.

Option 2: Purchase a new part. We understand that camera systems are utilized in demanding applications and environments, subject to normal wear and tear. Hence, we provide comprehensive instructions in video and PDF formats, along with all the necessary spare parts for daily repairs. Our sewer cameras are designed with modular components, enabling users to easily conduct their own repairs using simple hand tools. All components are plug-and-play and can be readily replaced.

3.If you prefer not to repair it or need an immediate solution, you can also take it to one of our authorized repair centers in Europe/USA to promptly address any issues.

Remarks:

1.Once customers identify the problem, please take some photos/videos and send them to us via email/WhatsApp or other methods.

2.After our technicians review the photos/videos, we will supply: Spare parts and technical help

3.In some situations, if the problem can't be solved by customers themselves, customers can send damaged parts back to us.

4.To save shipping costs, we suggest you order some extra parts for future use and send back all faulty parts at one time.

   What’s included:

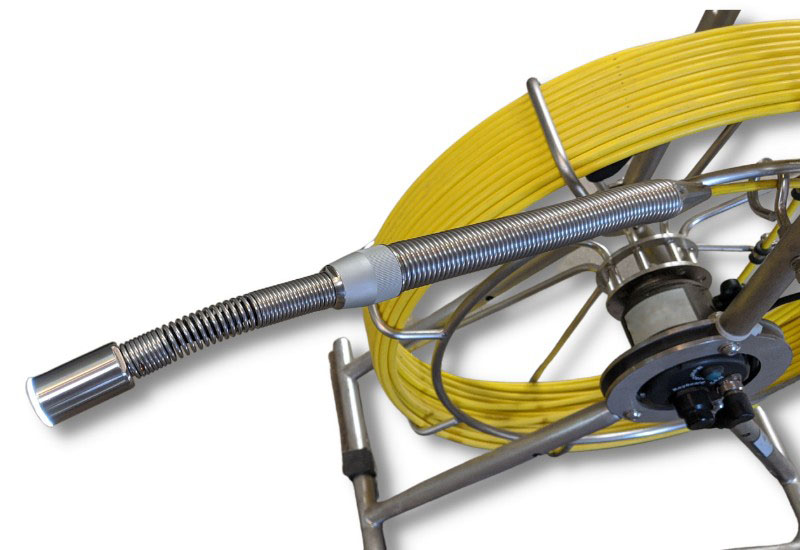

• 1 x 38mm Camera head

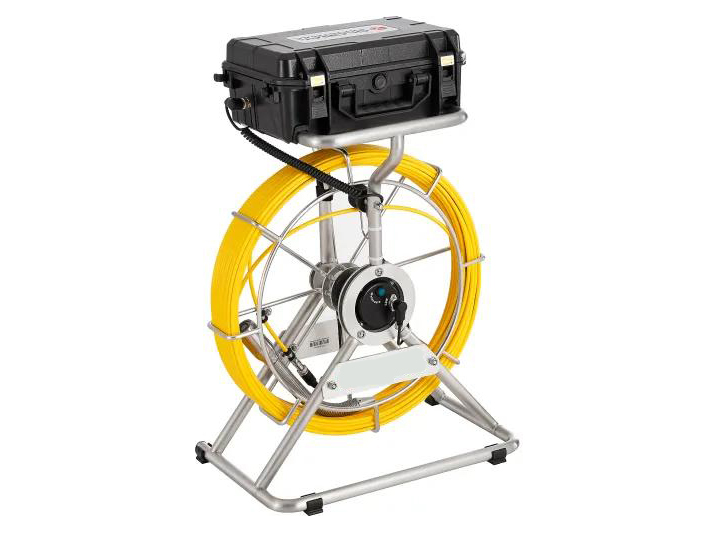

• 1 x 40-60m(130-200ft) cable wheel

• 1 x 7" monitor with Built-in Li-battery

• 1 x 72 Roller Skid (for pipe diameter 4"-5")

• 1 x 120 universal Skid (for pipe diameter 5 "- 12")

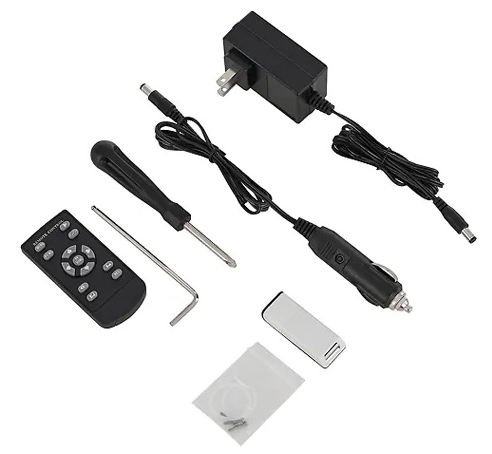

• 1 x remote control

• 1 x screw driver

• 1 x power adapter

• 1 x car charger

• 1 x universal monitor bracket

• 1 x U-Shape wheel extension handle

• 1 x tool bag

• 1 x hex Wrench

• 1 x double box wrench
